Marantz PM 78 classe A versterker

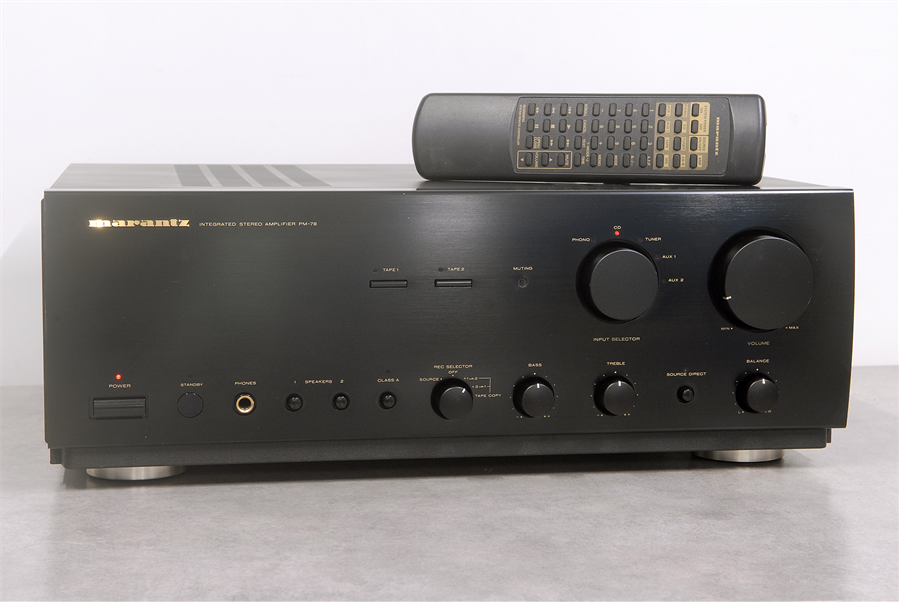

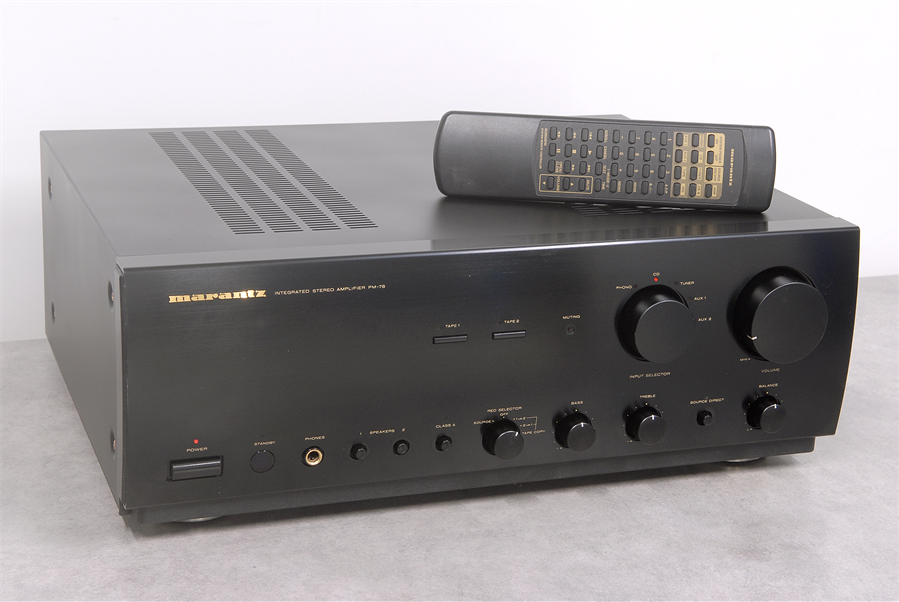

Nette goed werkende Marantz PM-78 versterker.
wordt geleverd met originele afstandsbediening.
De versterker is omschakelbaar van klasse AB naar klasse A.
2 Nieuwe luidspreker relais en relais overschakeling classe A gereinigd

Specificaties:

Form Integrated Amplifier
Input/output terminal Line input: Four lines
Tapes system input/output: Two lines
Phono input: One line
Speaker output: Two lines
Headphone output: One line
Output power (20Hz - 20kHz, both ch(es) operation)
At the time of a first class operation : 25W+25W (8ohms)
At the time of AB class operation : 190W+190W (4ohms)
150W+150W (6ohms)
100W+100W (8ohms)
THD (at 20Hz - 20kHz, the time of 10W output 8ohms) At the time of a first-class operation: 0.010%
At the time of AB class operation: 0.015%
Frequency characteristic (Source Direct) compact-disk: 10Hz-50kHz+0 -1dB
SN ratio High Level:109dB
Power consumption 160W (Electrical Appliance and Material Control Law)
The maximum Dimensions Width 439x height 156x depth of 375mm
Weight 12.3kg

Prijs: 250 euro
